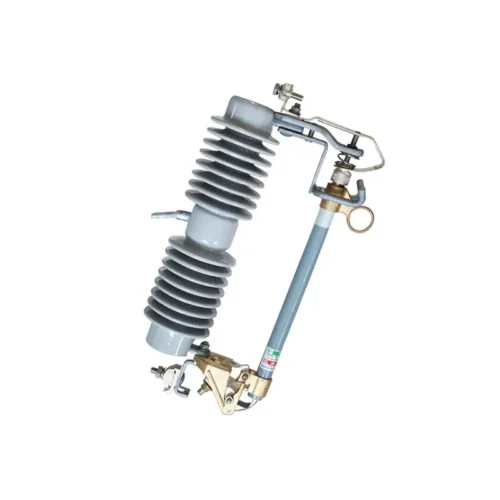

FSC-21-2 Drop Out Fuse Cutout

The FSC-21-2 Drop Out Fuse Cutout is an overcurrent protection device engineered for 27~33kV overhead distribution networks. It safeguards critical assets including transformers, capacitors, cables, and distribution lines by interrupting short-circuit and overload currents. Upon fault detection, the fuse link melts and the fuse tube drops open, creating a visible isolation gap for safe line sectionalizing. Built with fiberglass fuse tubes, corrosion-resistant conductive parts, and selectable porcelain or polymer insulators, the FSC-21-2 fully complies with IEC60282-2 and is suited for outdoor applications up to 1000 meters altitude.

The fuse cutout features a main bearing structure for stable support and alignment, along with a secondary bearing structure for added load capacity and secure contact during operation.

The FSC-21-2 drop out fuse cutout is supplied with a complete set of essential accessories to ensure reliable operation and ease of maintenance. These include:
● Lower General Bearing of Fuse: Provides stable support and facilitates smooth fuse tube dropping action during fault interruption.
● Arc Extinguishing Housing: Effectively quenches the arc generated when the fuse operates, enhancing safety and protecting surrounding equipment.
● American Type Fusible Load with Knife: Allows convenient load-breaking operation and reliable overcurrent protection, compatible with standard fuse coordination schemes.
● 300A Fusible Load: Designed for high-current applications, ensuring dependable interruption performance under rated load conditions.

These accessories work together to deliver consistent protection, safe operation, and extended service life in medium-voltage distribution systems.
