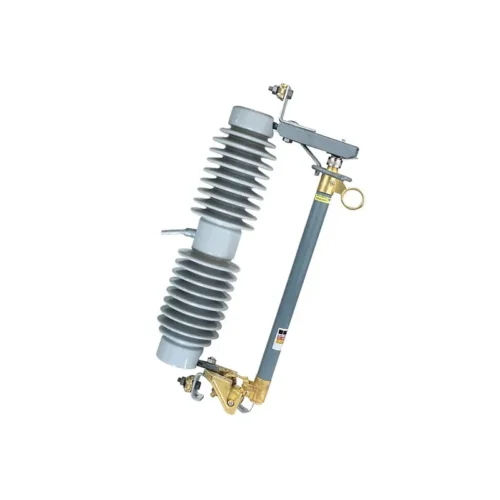

FSC-22-1 Drop Out Fuse Cutout

The FSC-22-1 Drop Out Fuse Cutout is a high-voltage overcurrent protection device designed for 33~36kV overhead distribution networks. It protects transformers, capacitors, cables, and distribution lines from damage caused by short circuits and overload conditions. When a fault current exceeds the fuse link rating, the link melts and the fuse tube drops open, creating a visible disconnect point for safe maintenance and fault isolation. Manufactured to IEC60282-2 standards, this cutout features corrosion-resistant conductive components, a robust fiberglass fuse tube, and selectable insulator materials for reliable outdoor performance.

The fuse cutout features a main bearing structure for stable support and alignment, along with a secondary bearing structure for added load capacity and secure contact during operation.

The FSC-22-1 includes a complete set of accessories for reliable performance and easy maintenance:

● Lower general bearing of fuse for stable support and smooth fuse tube dropping
● Arc extinguishing housing for effective arc quenching and enhanced safety
● American type fusible load with knife for convenient load-breaking and overcurrent protection
● 300A fusible load for dependable interruption in high-current applications
