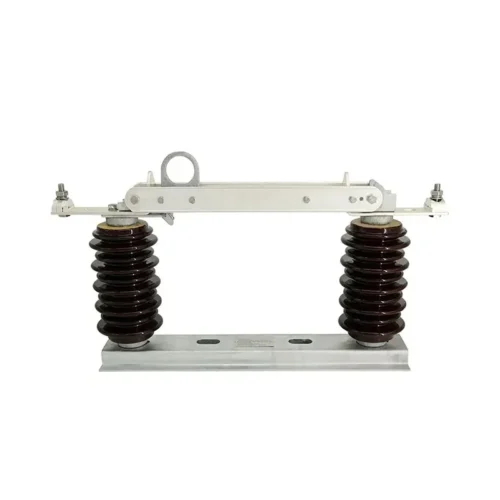

GW9-15GX Isolating Switch

The GW9-15GX is a compact outdoor isolating switch for overhead lines up to 38kV. Its 31mm/kV creepage distance suits heavily polluted or wet environments, while 400A/630A ratings and 20kA short-circuit withstand ensure robust performance. A 160-degree blade opening, self-locking mechanism, silver-plated copper contacts, and galvanized steel construction deliver safe, low-maintenance isolation for utility applications.

◆ Dual voltage ratings: 12kV and 36kV configurations available
◆ Current options of 400A and 630A to match varied feeder loads
◆ Wide 160-degree blade opening for unambiguous visual circuit break
◆ Silver-plated copper blades and brass/copper terminal pads for low-resistance conduction
◆ Insulator flexibility: select porcelain for traditional ruggedness or polymer for lightweight, hydrophobic performance
◆ Fully hot-dip galvanized structural steel components including channel base and operating eye

● Outstanding Pollution Performance: The 31mm/kV creepage distance exceeds standard requirements, delivering reliable insulation behavior in coastal, industrial, and high-humidity environments where surface contamination is a concern.
● Uncompromised Safety: A 160-degree blade opening combined with a self-locking mechanism eliminates ambiguity in switch status, reducing operational risk for line crews.
● Fault-Ready Construction: With 20kA short-circuit withstand and 50kA peak withstand, the switch remains mechanically and electrically intact under severe network fault conditions.
● Tailored Material Selection: Users can specify insulator type based on site conditions — polymer for reduced weight and self-cleaning hydrophobic action, or porcelain for proven long-term rigidity.
● Corrosion Defense: Galvanized steel components protect against rust and atmospheric degradation, extending the functional service life of structural parts without additional field coatings.

◆ Contamination-prone overhead distribution feeders in coastal or industrial zones
◆ Substation outgoing line disconnect where extended creepage is specified
◆ Medium-voltage overhead tie-switch locations requiring visible isolation
◆ Mining and heavy industry power supply isolation in harsh environmental conditions
◆ Rural distribution networks requiring low-maintenance, high-reliability isolation hardware
◆ Integration into loadbuster-equipped overhead systems for live-line operational flexibility
