HFSC-1-15F Drop Out Fuse Cutout

The HFSC-1-15F is a polymer type loadbreak drop out fuse cutout designed for dependable overcurrent protection in 10–15kV overhead distribution systems. Compatible with standard fuse links, it safeguards transformers, capacitors, cables, and distribution lines from damage caused by short circuits and overloads. Its polymer insulation and robust mechanical design make it suitable for demanding outdoor environments.

● Loadbreak capability allows safe circuit interruption under load conditions
● High-quality brass and silver-plated copper components ensure excellent conductivity and corrosion resistance
● Polymer insulator option provides lightweight handling and superior pollution performance
● Versatile spare parts configuration adapts to different installation requirements
● Compliant with IEC60282-2, meeting international safety and performance standards

◆ 10–15kV overhead distribution systems
◆ Transformer and capacitor bank protection
◆ Feeder and branch line protection in rural and urban networks
◆ Industrial and utility power distribution
◆ Environments with moderate pollution levels and altitudes up to 1000 meters

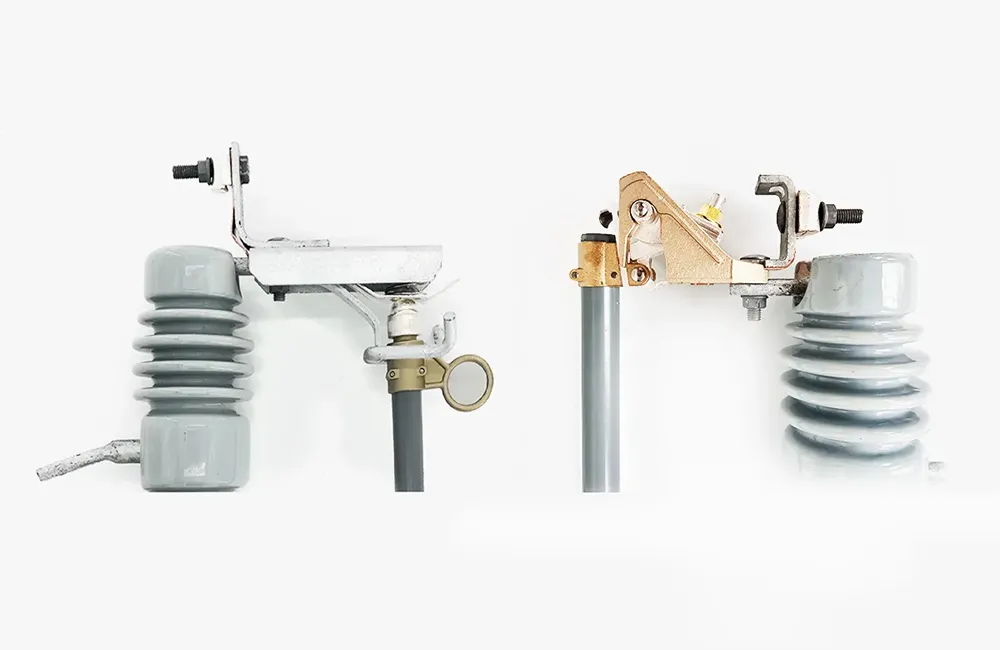

The fuse cutout features a main bearing structure for stable support and precise alignment, along with a secondary bearing structure that enhances load capacity and maintains secure electrical contact during operation.

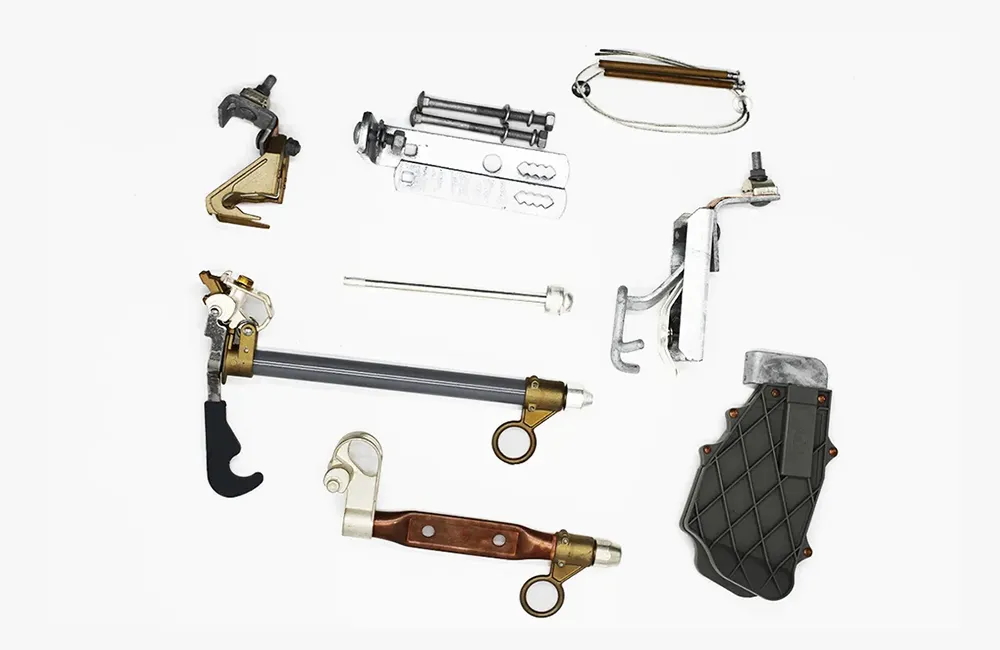

The cutout is equipped with a lower general bearing for stable fuse tube support and smooth drop-out action, an arc extinguishing housing for safe fault interruption, an American type fusible load with knife for convenient load-breaking and visible isolation, and a 300A fusible load for reliable high-current protection.
