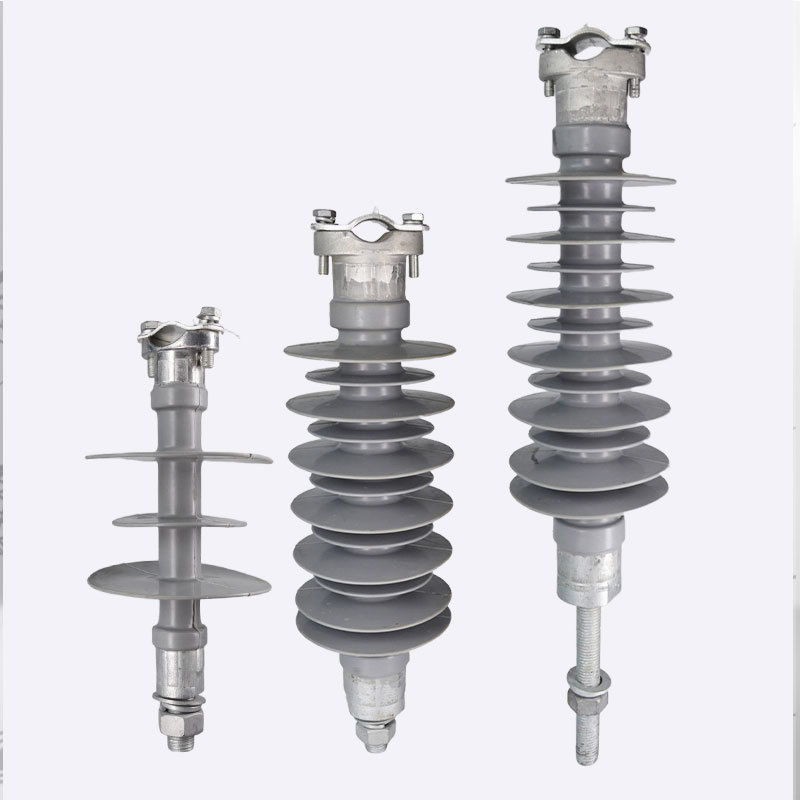

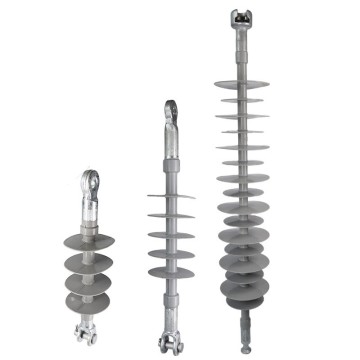

Polymeric Insulator for 11kV/33kV Distribution Lines
Product advantages
Our silicone rubber insulators are engineered for maximum performance and minimal maintenance.
-
Excellent HydrophobicityThe silicone rubber surface repels water, preventing the formation of a continuous water film. This results in high leakage current resistance and superior performance in wet, humid, and contaminated conditions.
-
Lightweight & RobustSignificantly lighter than porcelain or glass equivalents, our insulators reduce structural load, simplify handling, and cut installation costs. Despite their light weight, they offer high mechanical strength.
-
Outstanding Pollution & UV ResistanceThe material formulation is inherently resistant to salt, industrial pollutants, acid rain, and prolonged UV exposure, ensuring long-term integrity and performance.
-
Vandal-Resistance & SafetyThe polymer construction is highly impact-resistant, reducing the risk of damage from vandalism or gunshots. In the rare event of failure, it does not shatter explosively like glass, enhancing personnel safety.
-
Live-Line Maintenance CapabilityTheir hydrophobic nature and design often allow for safer maintenance work on energized lines compared to contaminated ceramic insulators.
-
Long Service LifeDesigned and tested for a service life exceeding 30 years, providing excellent long-term value and reliability.
Applications: Where Our Silicone Rubber Insulators Excel
Our insulators are versatile solutions for a multitude of demanding applications:
Overhead Transmission & Distribution Lines (HV, EHV, MV)
Substations (Bushings, Support Insulators, Apparatus Insulators)
Railway Catenary Systems & Traction Power
Polluted Coastal & Industrial Areas
High-Altitude and Desert Environments
Types of Silicone Rubber Insulators
We offer a complete range to meet your specific mechanical and electrical needs:
Suspension Insulators: Used to suspend the conductor from transmission and distribution towers. Typically used in a string.
Line Post Insulators: Act as both an insulator and a structural support, often used for compact line designs and substations.
Station Post Insulators: Provide support and insulation for busbars, disconnect switches, and other equipment within substations.
Pin Insulators: Commonly used for distribution lines on poles where the insulator is mounted on a pin.
Polymer Long Rod Insulators: A core design with rubber sheds and metal end-fittings, used for both suspension and tension applications.
Frequently Asked Questions (FAQ)
Q1: How does the hydrophobic property work?
A: Silicone rubber has a low surface energy, causing water to bead up and roll off (like water on a waxed car). This prevents the formation of a conductive water path, which is a primary cause of flashovers on contaminated ceramic insulators.
Q2: What is the expected lifespan of a silicone rubber insulator?
A: When manufactured to high standards, silicone rubber insulators have a proven service life of 30-40 years or more. Their longevity is dependent on the quality of the polymer compound and the design of the housing and end fittings.
Q3: Do silicone insulators require any maintenance?
A: They are largely maintenance-free. Unlike porcelain, they do not require regular washing to remove contamination. Visual inspections are recommended to check for physical damage or unusual weathering.
Q4: How do I choose between silicone rubber and composite/polymer?
A: "Composite insulator" is a broad term, with silicone rubber being the highest-performing polymer type. Other polymers like EPDM are also used but may not offer the same long-term hydrophobicity and UV resistance. Our experts can help you select the perfect material for your environment.
