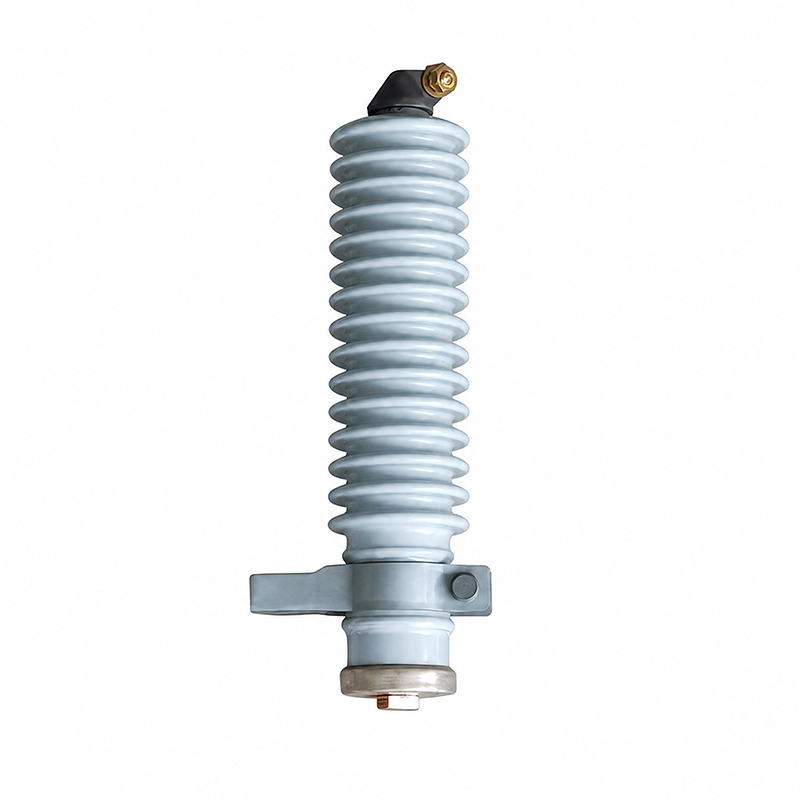

Y5(10)W-15 / Y5(10)C-15 Surge Arrester

The Y5(10)W-15 and Y5(10)C-15 are gapless polymer-housed surge arresters rated 15kV with 5kA or 10kA discharge current. Designed for overhead distribution transformer protection, they clamp lightning impulse to 45kV and switching impulse to 38.5kV. Featuring zinc oxide varistors, stainless steel terminals, and optional disconnector, they meet IEC 60099-4 for reliable overvoltage protection in harsh environments.

product details

Product Overview

The Y5(10)W-15 (W-type) and Y5(10)C-15 (C-type) are 15kV gapless metal-oxide surge arresters for distribution transformer and overhead line protection. Both models use high-quality zinc oxide varistors to rapidly shunt lightning and switching surges to ground, limiting residual voltages to 45kV and 38.5kV respectively. With a maximum continuous operating voltage of 12.7kV and high current withstand of 65kA/100kA, they suit moderate to heavy lightning regions. The polymer housing ensures pollution resistance and mechanical durability. Varistor sizes range from 35mm to 42mm, offering scalable energy absorption. Class 1/Class 2, Design B per IEC 60099-4.

Product Features

◆ 15kV rated voltage, 5kA or 10kA nominal discharge current
◆ Gapless ZnO varistor design for instant surge response
◆ Low residual voltages: 45kV lightning, 38.5kV switching
◆ High current impulses: 65kA / 100kA
◆ Varistor diameters: 35mm, 38mm, 40mm, 42mm
◆ Polymer housing with hydrophobic performance
◆ Optional: bracket, disconnector, earth lead, bird guard, line clamp

Product Advantages

● Fast Surge Suppression: Gapless ZnO varistors provide immediate overvoltage clamping.
● Pollution Resilience: Polymer housing resists tracking, erosion, and moisture ingress.
● Scalable Protection: Multiple varistor sizes and discharge ratings match site-specific lightning exposure.
● Corrosion Resistance: Stainless steel terminals ensure lasting connection quality.
● Operational Safety: Optional disconnector isolates failed units; bird guard prevents wildlife faults.

Applications

◆ 15kV overhead distribution transformer protection
◆ Pole-mounted and pad-mounted transformer surge protection
◆ Distribution feeder and lateral line lightning protection
◆ Recloser, switchgear, and capacitor bank overvoltage protection
◆ Underground-to-overhead transition point surge protection
◆ Industrial and rural networks in moderate to high lightning areas

Technical parameter

Electrical characteristics	Specification		Unit
Rated voltage of Surge arrreser	15		kV
Nominal discharge current	5	10	kA
Rated frequency	50		Hz
Maximum continuous operating voltage	12.7		kV
Steep current impulse residual voltage	51		kV(Crest)
Lightning Impulse residual voltage	45		kV(Crest)
Switching Impulse residual voltage	38.5		kV(Crest)
Long duration current impulse withstand voltage	150	250	A
High current impulses	65	100	kA (Crest)
Rated Short-circuit current	20 / 12 / 6 / 0.6 ± 0.2		kA
Class of Surge arrester	Class 1 or Class 2
Application	Distribution type
With or without gap	Gapless
Designation of arrester	Design B

Spare parts
NEMA A or B mounting bracket	with/without
Disconnector	with/without
Earth lead	with/without
Bird guard cap	with/without
Line clamp	with/without
Upper terminal (incoming line) bolt size	M12
Lower termina (outgoing line) bolt size	M10

Material
Upper terminal	Stainless steel 304
Housing	Polymer type
Color of housing	Dark grey / light grey
Varistor	High quality zinc oxide varistor
Size of Varistor	35mm / 38mm /40mm / 42mm
